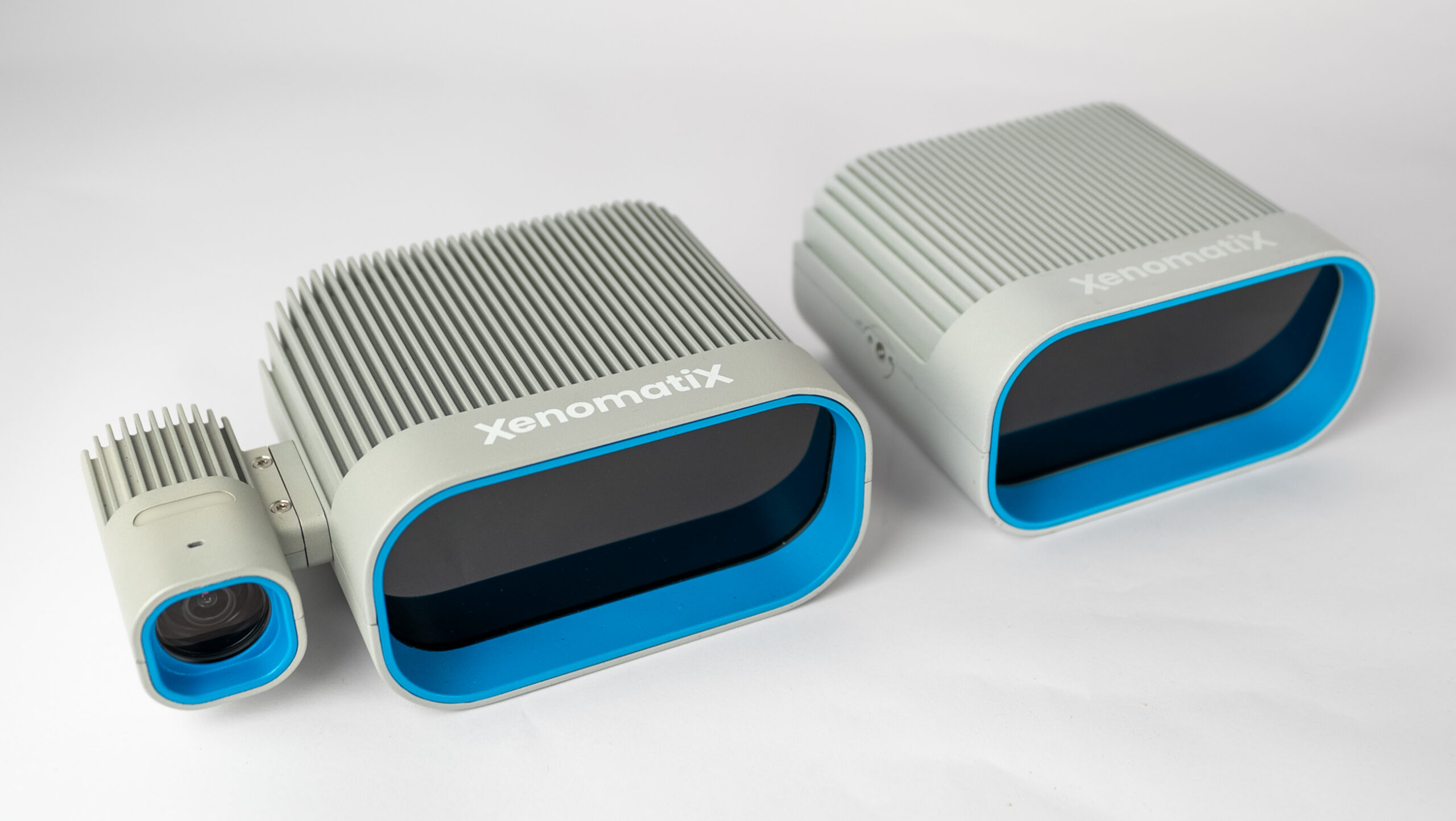

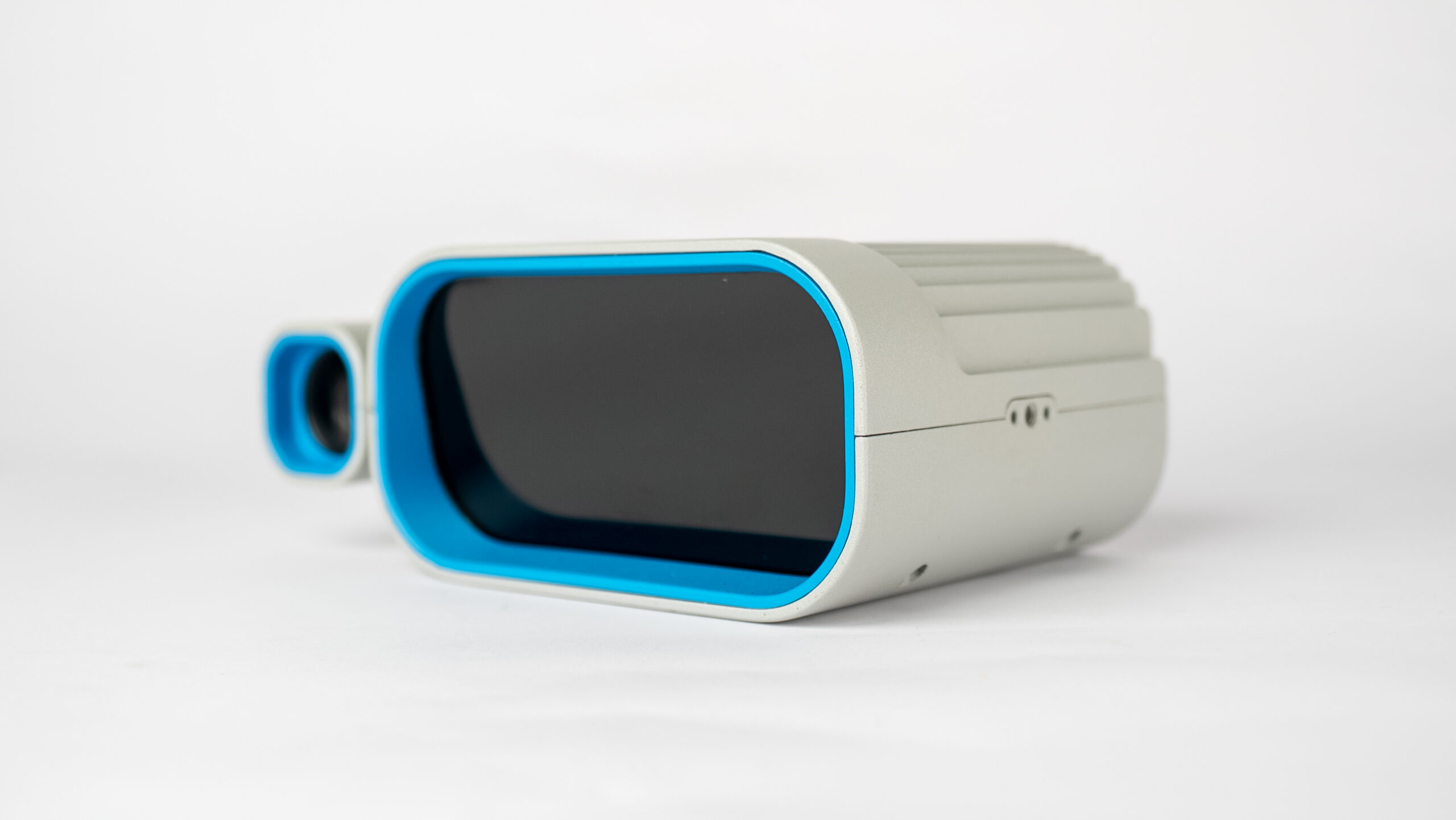

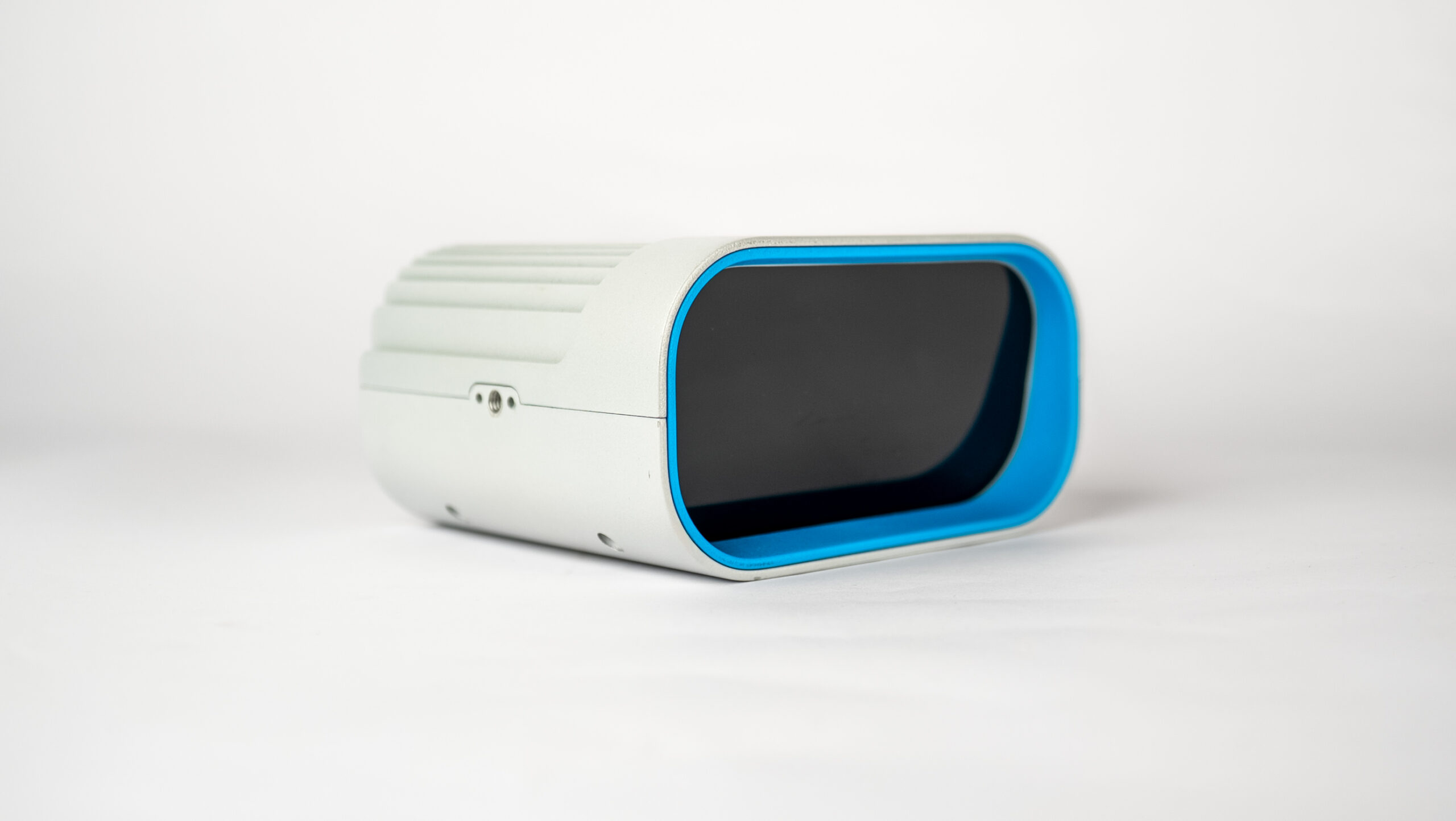

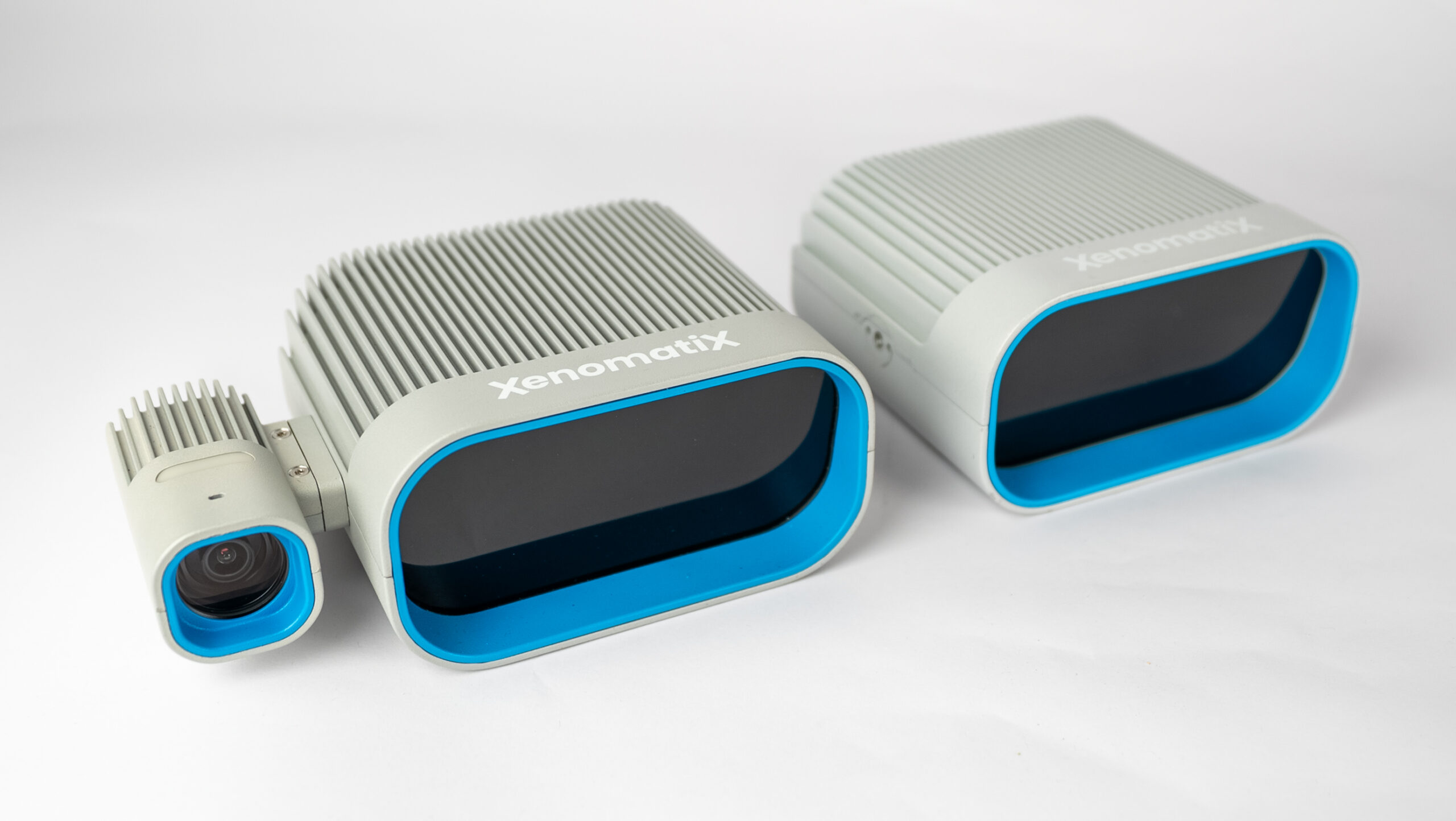

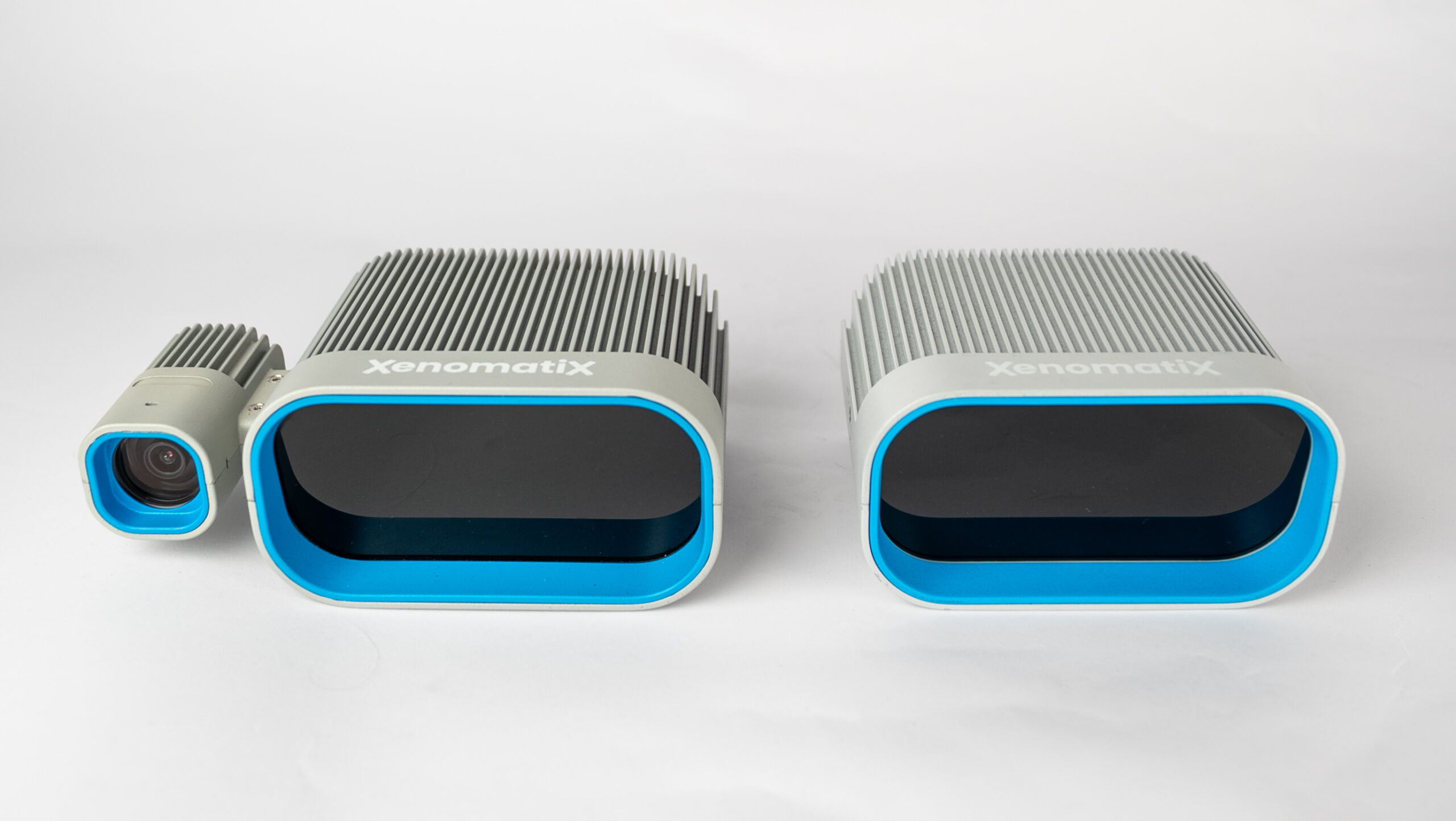

Xavia: The Next-Generation Solid-State LiDAR
Xavia is a true solid-state LiDAR with no moving parts, built for unmatched reliability and precision. It captures objects from just a few centimetres up to 140 meters, effortlessly distinguishing dark surfaces even next to highly reflective ones.
With its AI-powered brain, high-speed processing, and all-in-one sensor-fusion, Xavia delivers powerful perception in a single plug-and-play device. Flooding the scene with safe, Class 1 eye-safe laser light, it ensures no detail is missed—all at a fair, accessible price.
Unique selling points
✔️ True solid-state

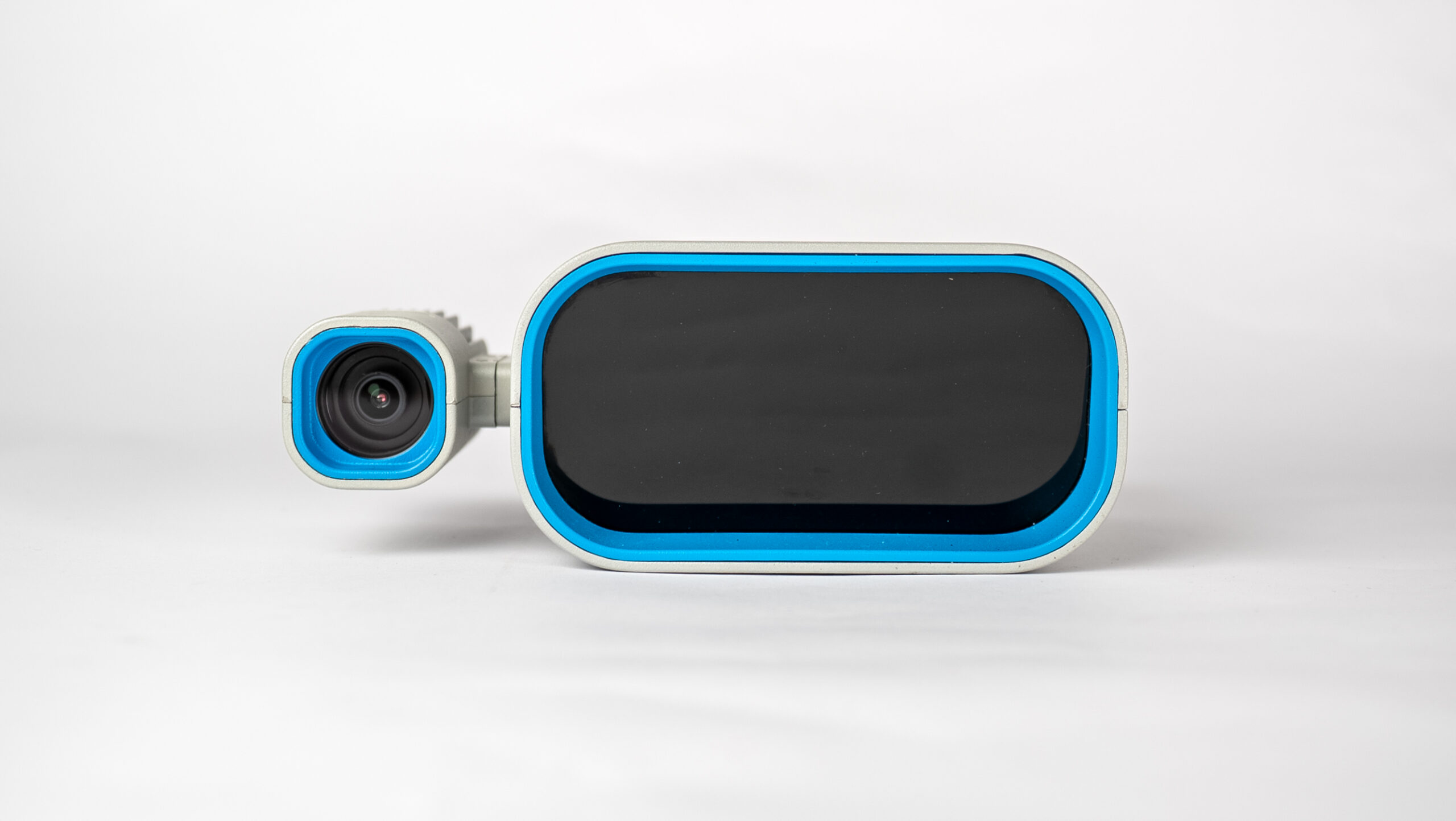

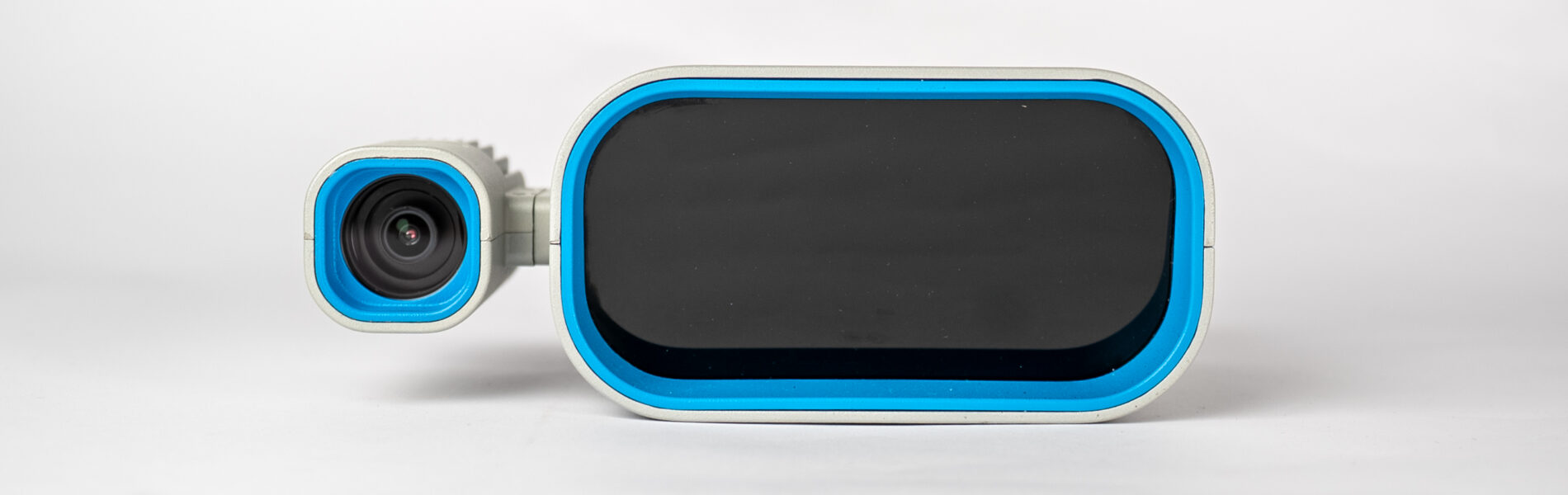

✔️ Sensor fusion with 2D Camera
✔️ Superior Reflector Handling
✔️ Quasi-Zero Stand-Off
✔️ ”Only pay for what you need” Approach
Price range: € 2.975,00 through € 4.450,00 ex VAT
Pay with Ease
Trusted Delivery
- ✔️ 24 months warranty
- ✔️ Produced with automotive grade components
- ✔️ True solid state commitment
- ✔️ Over 12 years of Lidar business
Shipments start Mid-November
The incoterm is DAP
Software development kit (SDK)
Xavia comes with an SDK that gives you real-time access to the data streaming via an ethernet connection between the Lidar and your computing system. The SDK is for Windows x64, Linux x64 and Linux ARM. It contains documentation and example code in C++. The SDK allows you to start and stop the Lidar, stream, interpret and store data and get status and error codes.

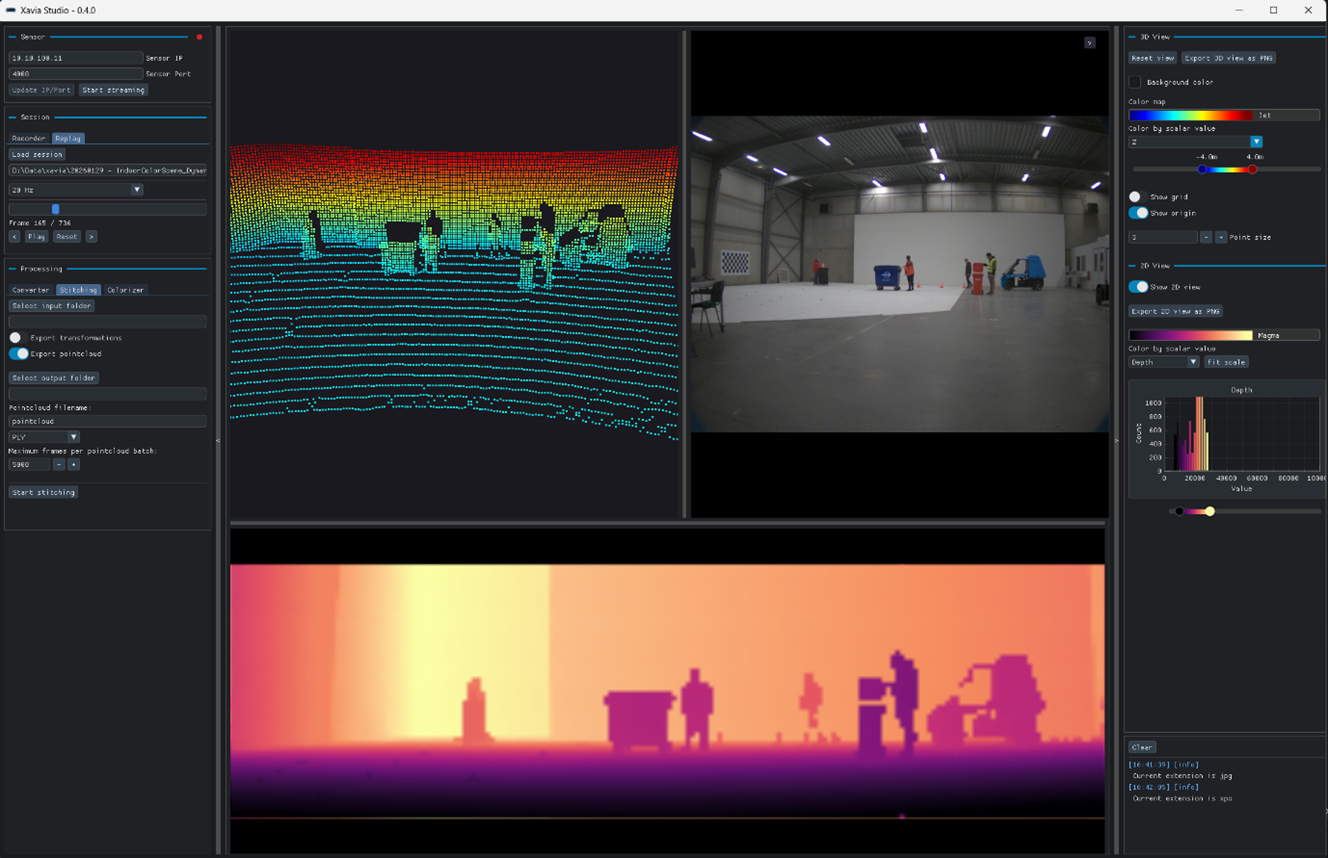

Checking the sensor’s operation and the data stream can be done using the built-in web app of Xavia. Any modern browser can be used regardless of the operating system.
Additional information
| Weight | 3,5 kg |
|---|---|
| Dimensions | 35 × 25 × 20 cm |
| Best Range | 140m |
| Typical precision | 0,07% of distance |
| Lidar FoV | 57.6° x 16.8° |
| Lidar Resolution | 0.3° x 0.3° |
| Camera FoV | 65° x 51° |
| Camera Resolution | 1440 x 1080 pixels, 12-bit |
| Laser Classification | Class 1 |
| Wavelength | 940 nm |
| Max. Frame Rate | 20 Hz |
| Power Consumption | 15-23W |
| Operating Voltage | 12-24V |
For the full datasheet, please click here.
